Multi Product Continuous Frying System
Our namkeen fryer machine is designed to fry a wide range of food products with precision and efficiency. Whether you're a small business owner or a large-scale food manufacturer, our system can handle your wide range of frying needs.
Equipped with a high-quality Heat Exchanger for oil heating, can use cost-effective fuels like Wood or Pellets. Advanced technology ensures consistent/even frying while minimizing oil usage. Highly versatile and customizable to specific product/production needs. Easy to operate and maintain, built to last; ongoing support and maintenance services provided.
Special Features
- Multi Products Fryer Suitable for Floating products (Sev, Ghathiya, Papdi, Ratlami, Bhavnagri) & Non-floating products (Pulses, Chana Dal, Peanuts, Coated Nuts/Tasty).
- Frying Control Multi oil inlets, positive flow, precise temperature control, rapid feed-change adjustment.
- Continuous Filtration 100% of system oil volume through drum filter every minute.
- Oil Quality Low oil volume + rapid turnover = fresh product, long shelf life.
- Compact Design Reduces space, energy, and water usage.
Technical Specifications (MCF Models)
| Model | Output | Edible Oil Holding Capacity | Power Required (Diesel/Thermic/Gas) | Power Required (Wood) | Floor Space | Material of Construction |
|---|---|---|---|---|---|---|
| MCF-300 | 300 Kg/Hr | 400 Ltrs | 6 Hp | 9 HP | 400 Sq.Ft. | AISS-304 |
| MCF-500 | 500 Kg/Hr | 600 Ltrs | 8 Hp | 11 HP | 500 Sq.Ft. | AISS-304 |
| MCF-1000 | 1000 Kg/Hr | 1000 Ltrs | 11 Hp | 16 HP | 600 Sq.Ft. | AISS-304 |
Machine Videos

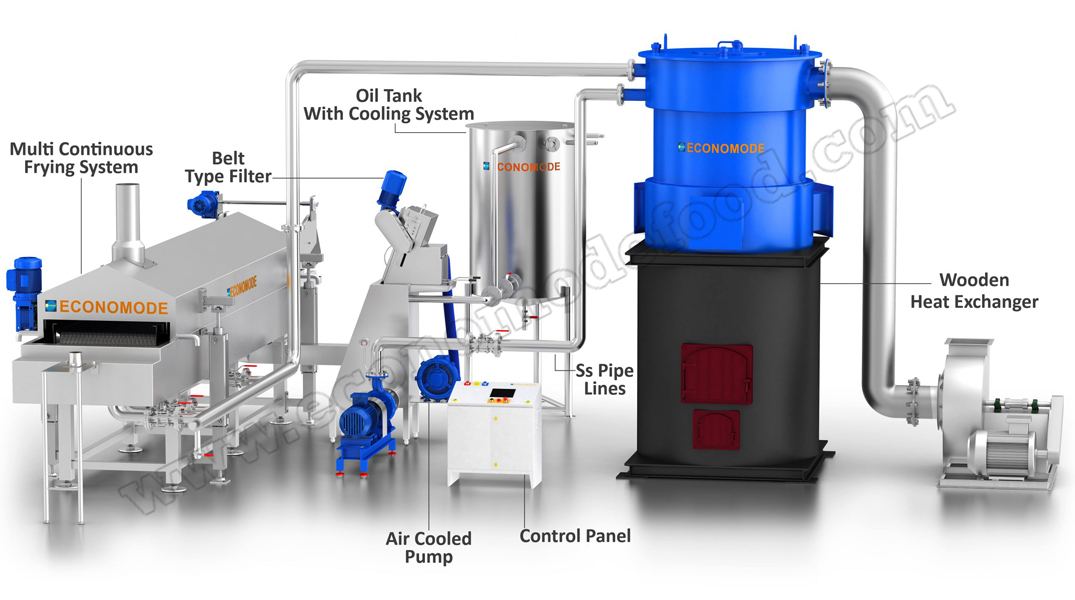

Machine Components
Heavy-duty stainless steel fryer with a variable speed conveyor and submerger system.
Optimized heat transferring coil system, compatible with wood, pellets, gas, or diesel burners.
Rotary drum filter that cleans 100% of oil volume continuously to prevent carbon buildup.
Centralized panel for speed, temperature, and pump operation.
Multi Product Continuous Frying System
Full Product Assembly
Click on the image below to view the full high-resolution assembly drawing and layout of the machine.
